In industrial automation control systems, the communication panel of the electrical control cabinet performs multiple critical functions, including power input, network transmission, and device debugging. Seemingly minor details—such as whether the interface types are comprehensive, if expansion is flexible, and whether late-stage maintenance is convenient—often dictate the post-commissioning Operation and Maintenance (O&M) efficiency and total comprehensive cost of a production line.

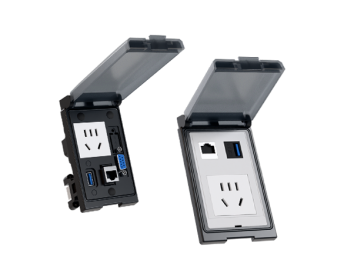

The SVLEC SVL series communication panels offer two distinct architectural designs: integrated highly-compact and split modular. These options are engineered to cover diverse application scenarios, ranging from standard enclosures to harsh, specialized operating environments.
01: Integrated Communication Panels: High Integration & Multi-Interface Combinations

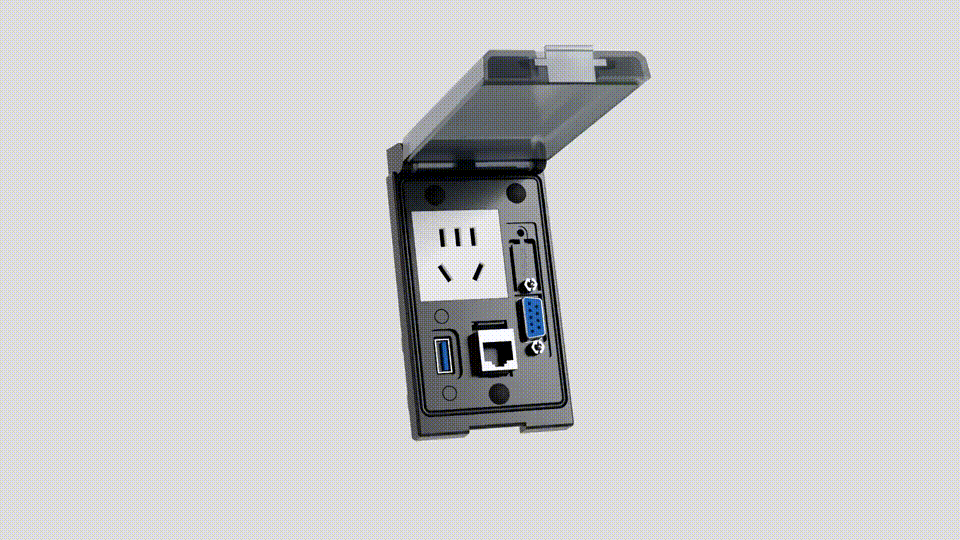

The integrated panel highly consolidates power, network, and data interfaces into a single, unified panel. It is ideal for compact spaces and installation environments with clearly defined interface requirements.
Key Technical Specifications
- High-Performance RJ45 Network Ports
Equipped with standard CAT6 interfaces by default, with custom upgrades to CAT6A specifications available to guarantee high-speed, stable network data transmission in harsh industrial environments. - Flexible & Compatible D-SUB Interfaces
The interface form factor can be flexibly adapted between D-SUB9 and D-SUB15 to meet the diverse connection and expansion needs of varying industrial control equipment. - USB 3.0 High-Speed Data Ports
The entire series comes standard with USB 3.0 ports, delivering transmission speeds several times faster than traditional USB 2.0. This efficiently supports data extraction and device debugging operations.
02: Split Communication Panels: Modular Combinations for More Flexible O&M

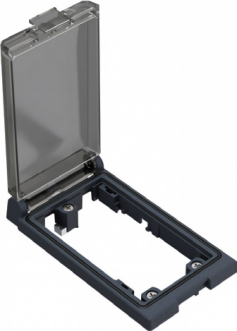

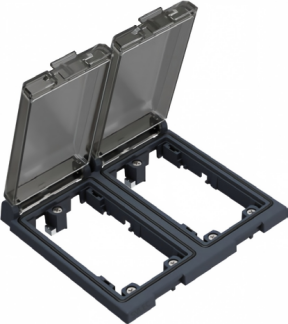

The split panel consists of two components: the panel cover and the functional modules. The cover is available in single-communication (SVI-A1) and dual-communication (SVI-A2) specifications, complete with matching power protection covers.
Core Advantages of the Split Design
- Extremely High Versatility

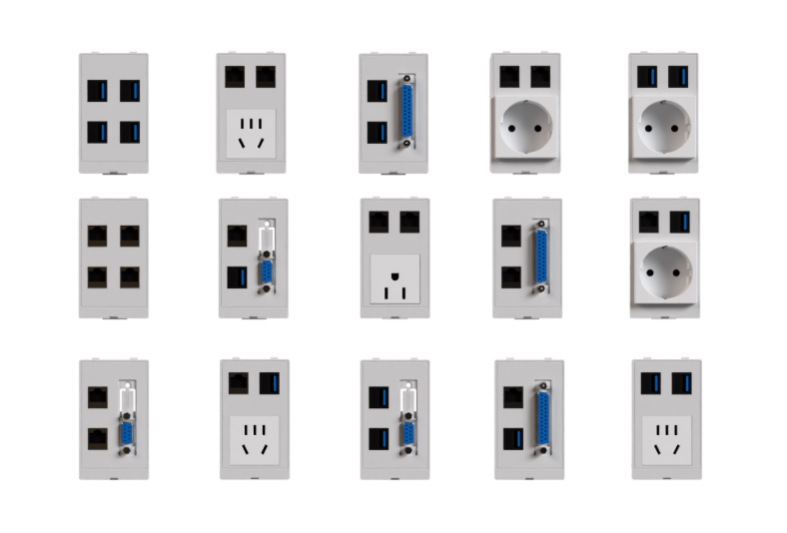

It breaks through the limitations of single-interface setups. It is compatible with all mainstream communication and power supply protocols, adapting flawlessly to equipment access needs across office, industrial, and energy-saving scenarios. - Flexible & Easy O&M

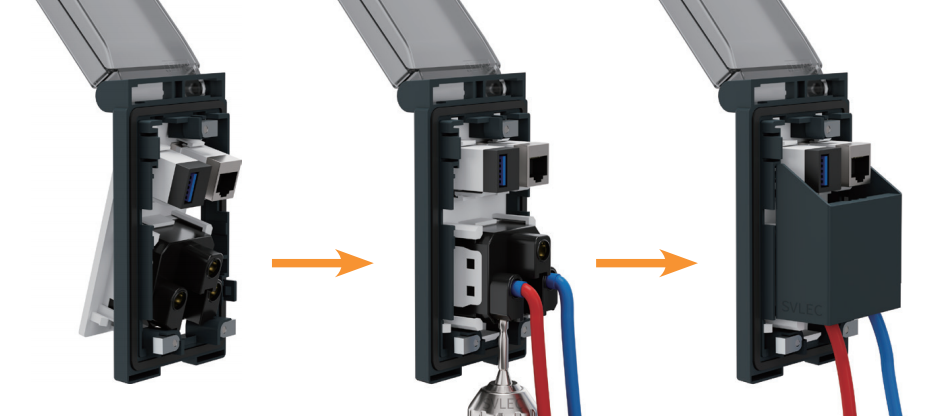

The modular combination allows for free assembly and disassembly. Faulty modules can be replaced individually, significantly simplifying the installation and maintenance process. This makes it an ideal matching choice for energy-saving management systems. - Protection Cover Installation Diagram

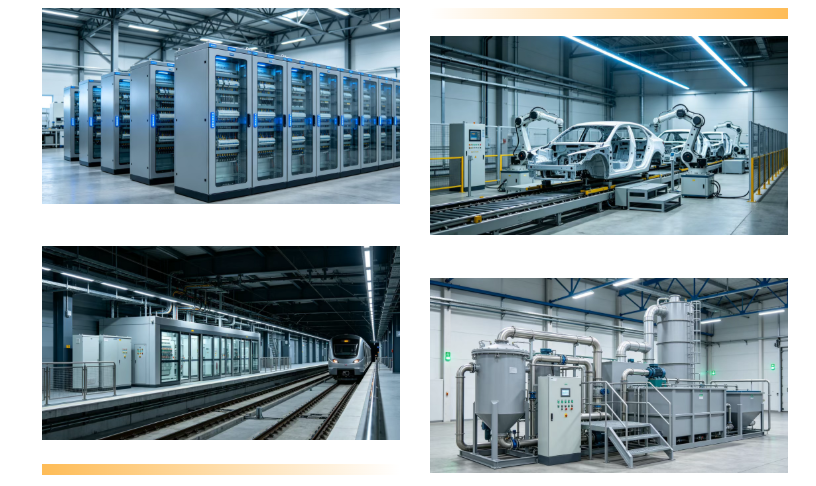

03: Typical Industry Applications
- Modular Industrial Control Cabinets
Tailored for standard industrial enclosures and outdoor electrical control cabinet scenarios. It supports flexible splicing as well as adding or reducing interface counts on demand. By breaking the rigid limitations of traditional fixed-specification panels, it dramatically enhances cabinet configuration flexibility and scalability. - Automotive Manufacturing Lines
Targeted at electrical control cabinets and testing/tooling equipment across automotive production workstations. It delivers modular adaptation to meet the distinct communication and control requirements of different stations. Its convenient installation and efficient replacement adapt perfectly to rapid production line iterations and adjustments. - Rail Transit Supporting Facilities
Applied in critical equipment such as on-board electrical control boxes and trackside low-voltage control cabinets. Leveraging a compact structural design, it perfectly fits the tight installation spaces inherent to the rail transit sector, ensuring stable and reliable signal transmission. - Environmental Protection Treatment Equipment
Suitable for electrical control cabinets used in complex operating conditions, such as wastewater and exhaust gas treatment. It features excellent environmental adaptability, while its split structure makes late-stage equipment inspection and circuit maintenance highly convenient, effectively lowering overall O&M costs.
Conclusion
As a pivotal component for external interaction in electrical control cabinets, the selection of a communication panel directly impacts system integration efficiency and long-term O&M costs.
With rich interface combinations, flexible modular designs, and highly reliable environmental adaptability, the SVLEC SVL series integrated and split solutions offer a professional, high-tier choice for the fields of industrial automation and energy-saving management.
