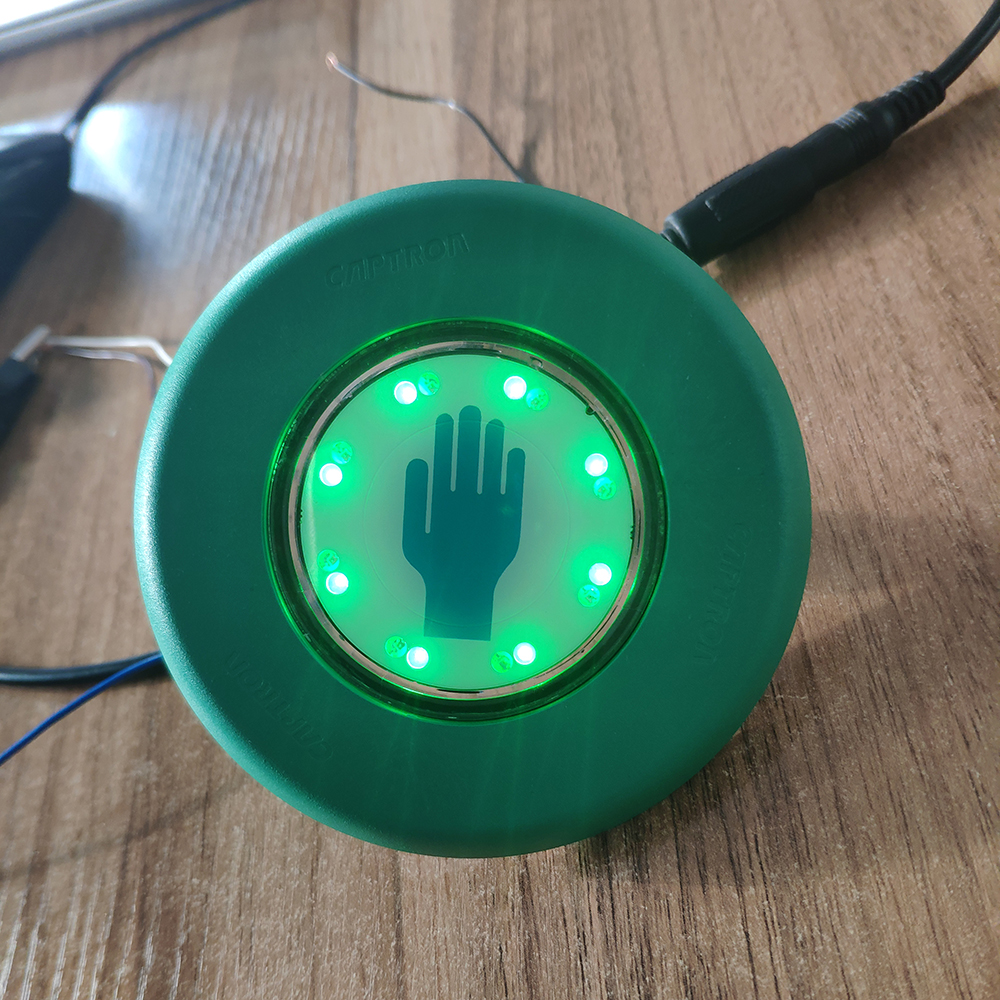

Capacitive touch switches are widely used in fields such as home appliances, automobiles, medical equipment, office equipment, and smart homes, and are an indispensable component of modern electronic products. Users can touch the switch surface through fingers, pens, or other non-conductive objects without directly touching it, reducing physical wear and tear. LEDs for visual feedback. It has good resistance to electromagnetic interference in the environment and can work stably in various complex environments. Due to the absence of mechanical contact parts, it has a long service life and low maintenance costs. Compared to traditional mechanical switches, capacitive touch switches consume less energy in standby mode. We have various types of Industrial Led Light. For more details, please click on our Sensor and Actuator to browse more about our products. If you would like to learn more about product specifications, please download our product catalog. We can provide a one-stop shopping experience for the automation field. Our I/O System, Connectors, and other products are popular overseas.
Features:
| Supply voltage | DC 24V DC(16,8...32V) |
| Short-circuit protection | Short-circuit and overload protection |
| Load current | Max.400mA |
| Voltage drop | max.3V at 400mA |
| Output | PNP-NO(NPN-NO optional) |
| Current consumption | max.30 mA at 24V DC |
| Output signal | approx.300ms(option,,Dynamic) Permanent signal(option,,static) |
| Operation temperature | -30℃...+80℃（Dynamic） 0...+55℃(static) |
| LED1 | 8 green LEDs |
| LED2 | 8 red LEDs |
| Degree of protection(IP) | Frontside IP69K |
| Type of operation | Capacitive |
| Reverse polarity protection | Protection of all lines |
| Operation force | No operation force required |
| Type | NO. | Cap ring color | LED color | Termination methods | Feedback | Pattern | Output mode |
| GLZD9-A0-0-P-S-0-RD/GN | 885001 | green | red/white/blue | M8 4pin | voice | blank | PNP |
| GLZD9-A0-1-P-S-0-RD/GN | 885002 | green | red/white/blue | M12 4pin | voice | blank | PNP |
| GLZD9-A0-2-P-S-0-RD/GN | 885003 | green | red/white/blue | M8 5pin | voice | blank | PNP |
| GLZD9-A0-3-P-S-0-RD/GN | 885004 | green | red/white/blue | M12 5pin | voice | blank | PNP |
| GLZD9-A0-1-N-S-0-RD/GN | 885005 | green | red/white/blue | M8 4pin | voice | blank | NPN |
| GLZD9-A0-0-N-S-0-RD/GN | 885006 | green | red/white/blue | M12 4pin | voice | blank | NPN |
